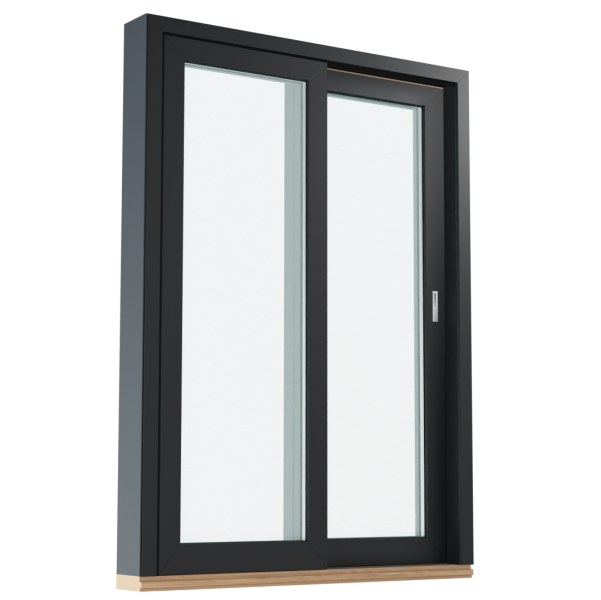

IV68 PROFILE (scandinavian)
| Timber | Pine (other types of wood on demand) | ||
| Frame size | 184x45mm (thickness x width) | ||
| Standard color | White RAL9010 or NCS S0502Y | ||
| Glass unit | 3-glass, thickness 36mm | ||
| Spacer in glass unit | Aluminium or insulated | ||
| Glass sealing | Sealing rubber | ||
| Glazing beads from outside | PVC, white RAL9010 | ||
| Threshold | Wood | ||
| Hardware | GU | ||
| Handle | GU Dirigent | ||
| U-value | 1,0 W/m2K (specified value for door scheme-A) |

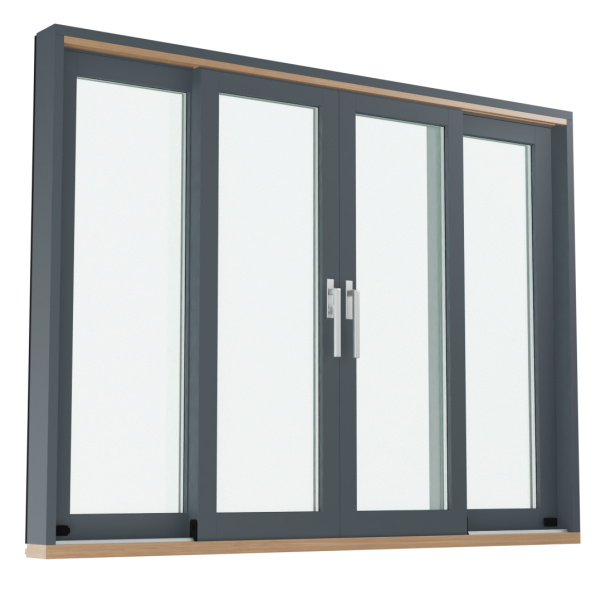

IV78 PROFILE
| Timber | Pine (other types of wood on demand) | ||
| Frame size | 184x56mm (thickness x width) | ||
| Standard color | White RAL9010 or NCS S0502Y | ||
| Stikla pakete | 3-glass, thickness 36mm | ||
| Spacer in glass unit | Aluminium or insulated | ||
| Glass sealing | Silicone | ||
| Glazing beads from outside | Wood | ||
| Threshold | Composite material with aluminium (grey) | ||
| Hardware | GU | ||
| Handle | GU Dirigent | ||
| U-value | 0,9 W/m2K (specified value for door scheme-A) |
IV92 PROFILE
| Timber | Pine (other types of wood on demand) | ||
| Frame size | 212x56mm (thickness x width) | ||
| Standard color | White RAL9010 or NCS S0502Y | ||
| Glass unit | 3-glass, thickness 50mm | ||
| Spacer in glass unit | Aluminium or insulated | ||
| Glass sealing | Silicone | ||
| Glazing beads from outside | Wood | ||
| Threshold | Composite material with aluminium (grey) | ||
| Hardware | GU | ||
| Handle | GU Dirigent | ||
| U-value | 0,8 W/m2K (specified value for door scheme-A) |

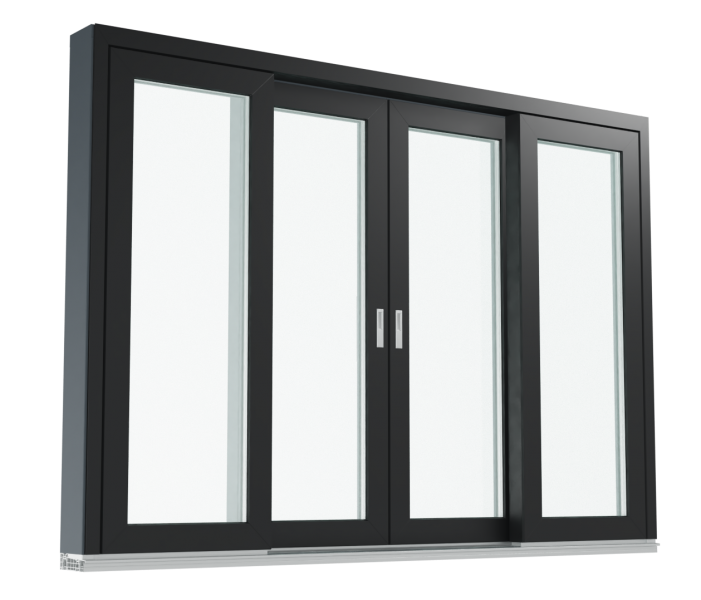

IV68 PROFILE (scandinavian)
| Timber | Pine (other types of wood on demand) | ||
| Frame size | 184x45mm (thickness x width) | ||
| Standard color | White RAL9010 or NCS S0502Y | ||
| Standard color for aluminium profiles | White RAL9010 or NCS S0502Y | ||
| Glass unit | 3-glass, thickness 36mm | ||
| Spacer in glass unit | Aluminium or insulated | ||
| Glass sealing | Sealing rubber | ||
| Threshold | Wood | ||
| Hardware | GU | ||
| Handle | GU Dirigent | ||
| U-value | 1,0 W/m2K (specified value for door scheme-A) |

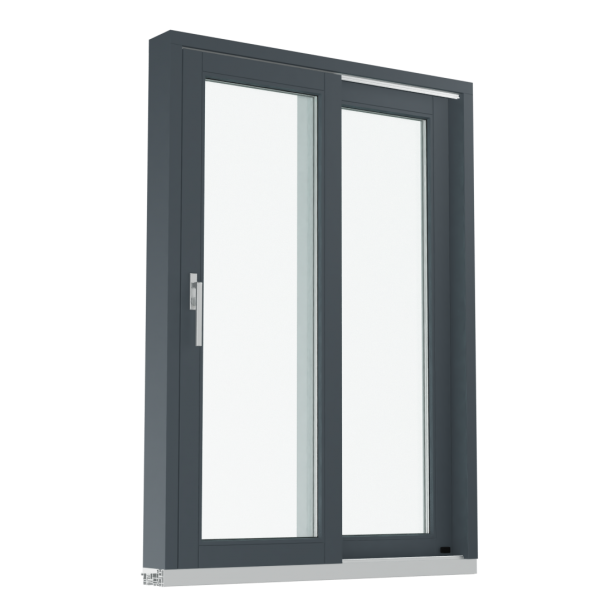

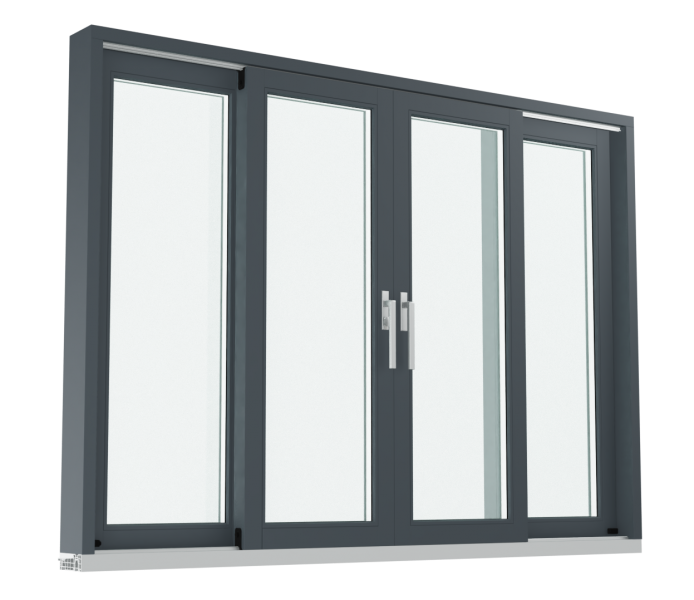

IV78 PROFILE
| Timber | Pine (other types of wood on demand) | ||
| Frame size | 184x56mm (thickness x width) | ||
| Standard color | White RAL9010 or NCS S0502Y | ||
| Standard color for aluminium profiles | White RAL9010 or NCS S0502Y | ||
| Glass unit | 3-glass, thickness 36mm | ||
| Spacer in glass unit | Aluminium or insulated | ||
| Glass sealing | Sealing rubber | ||
| Threshold | Composite material with aluminium (grey) | ||
| Hardware | GU | ||
| Handle | GU Dirigent | ||
| U-value | 0,9 W/m2K (specified value for door scheme-A) |

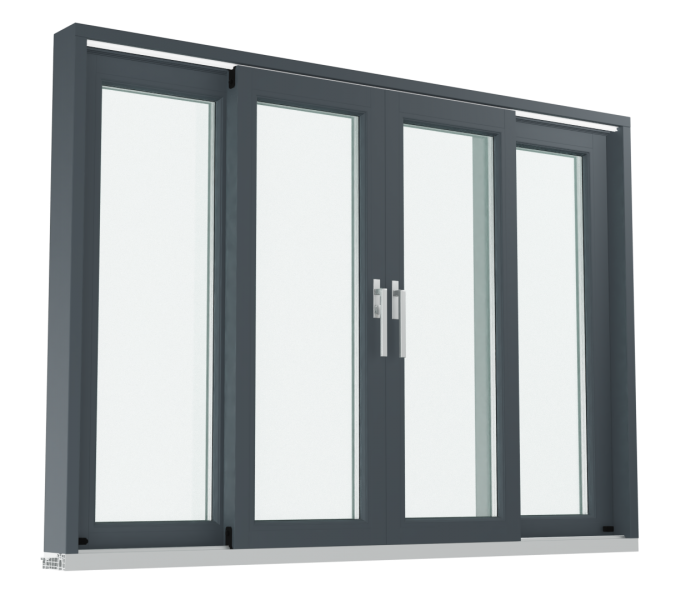

IV92 PROFILE
| Timber | Pine (other types of wood on demand) | ||
| Frame size | 212x56mm (thickness x width) | ||
| Standard color | White RAL9010 or NCS S0502Y | ||
| Standard color for aluminium profiles | White RAL9010 or NCS S0502Y | ||
| Glass unit | 3-glass, thickness 50mm | ||
| Spacer in glass unit | Aluminium or insulated | ||
| Glass sealing | Sealing rubber | ||
| Threshold | Composite material with aluminium (grey) | ||
| Hardware | GU | ||
| Handle | GU Dirigent | ||
| U-value | 0,8 W/m2K (specified value for door scheme-A) |

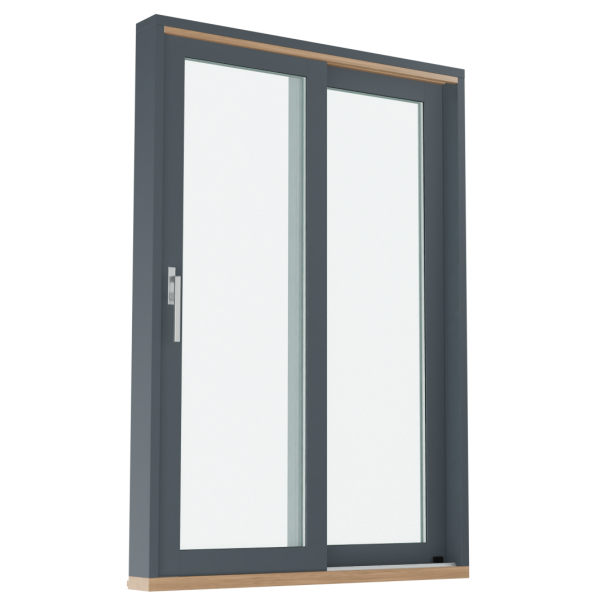

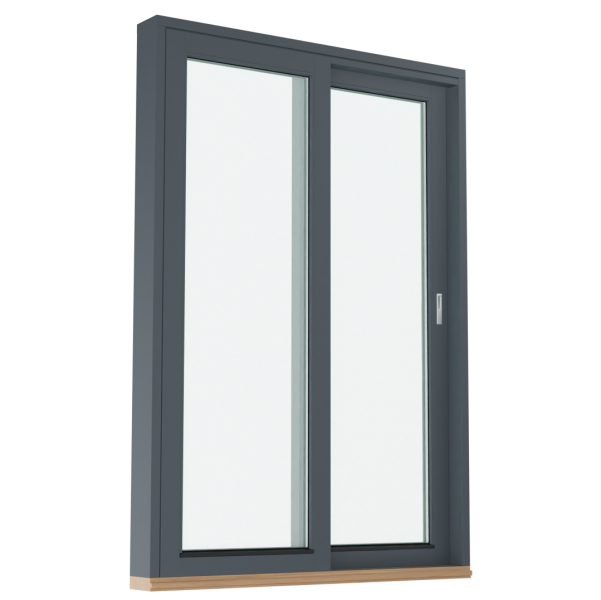

A shēma

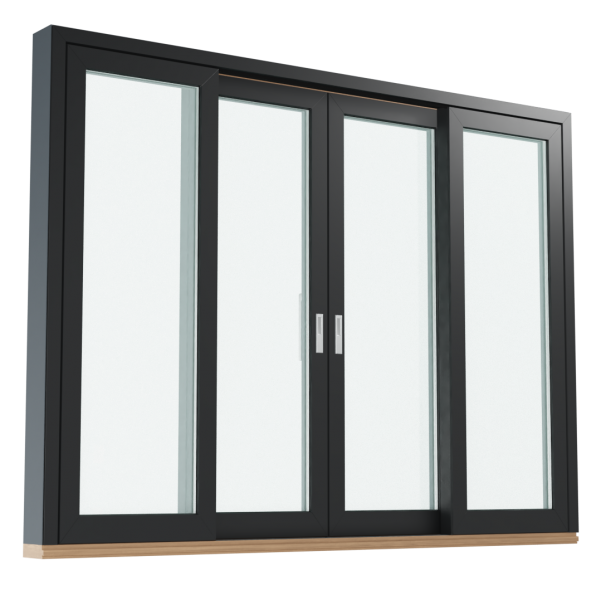

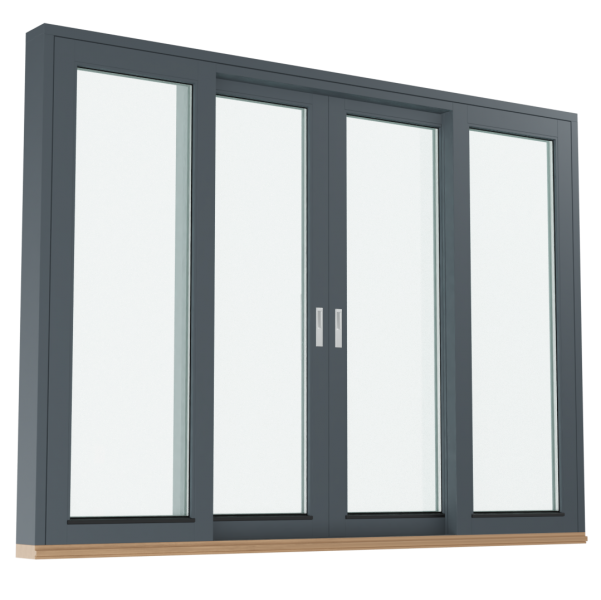

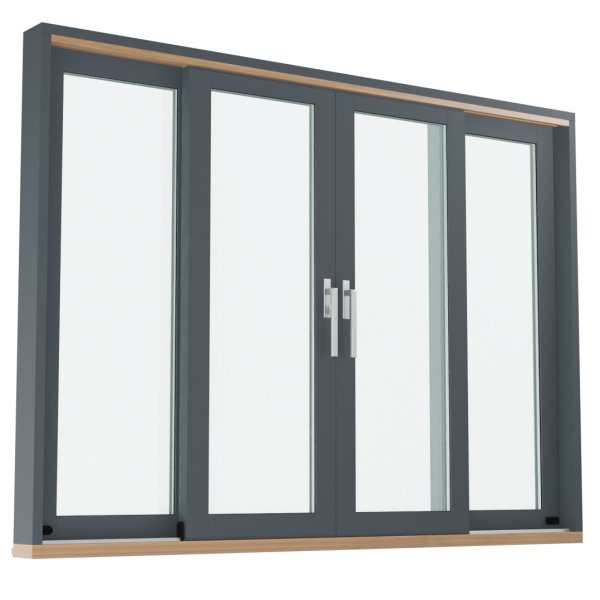

C shēma
Wood is a natural product and its tone, texture and fiber are different. When choosing a lacquered finish, these properties of wood will be visible.
The tone on the finished product will be different from the tone on your device screen. To make sure you choose a shade, contact us and we will arrange a sample review.
Varnish options for oak
Lacquered
Q 147 Z
Q 006 Z
Q 073 Z
Q 043 Z
Q 007 Z
Q 045 Z
Q 945 Z
Q 315 Z
Q 175 Z
Varnish options for pine
J-482-T
J-1705-T
J-1816-T
J-45-T
EICHE-EICHE
J-1519-T
J-1634-T
J-50-T
J-1636-T
G.7.10.79T
J-357-T
J-77-T
J-34-T
J-451-T
J-3165-T
J-65-T
J-775-T
J-427-T
J-297-T
J-482-T
Wood is a natural product and its tone, texture and fiber are different. When choosing a painted finish, the properties of this wood will remain under the paint layer and will not be visible.
The tone on the finished product will be different from the tone on your device screen. Below are the most commonly used color tones. Choose a color shade from the RAL or NCS color catalog.
RAL tones
RAL 3003
RAL 6007
RAL 7005
RAL 7008
RAL 7016
RAL 8008
RAL 8016
RAL 9005
RAL 9010
RAL 9016
When choosing wooden windows or doors with aluminum cladding on the outside, you can choose the shades of aluminum cladding from the RAL or NCS catalogs.
The following are the most commonly used shades for aluminum cladding. Contact us to clarify the availability of your chosen color shade.
RAL tones
RAL 3003
RAL 6007
RAL 7005
RAL 7008
RAL 7016
RAL 8008
RAL 8016
RAL 9005
RAL 9010
RAL 9016
Match the silicone tones to your chosen wood window or door color tone.
For wooden windows and doors, a silicone sealant is used to seal the glazing inside and outside around the perimeter. The exception for sliding doors is the IV68 (Scandinavian) profile, where the glazing is sealed with rubber. Sealing rubber is used to seal the glazing inside and outside for wood – aluminium windows and doors. The sealing rubber is available only in black.
RAL tones
Transparent
RAL 9016
RAL 1011
RAL 7040
RAL 8001
RAL 8011
RAL 8019
RAL 9005
Handles are an important technical and design element.
Their primary task is to ensure the functionality of the window or door, but at the same time, it will serve as an eye-catching design element. Handles can be of different shapes, shades and materials. However, several technical parameters determine whether they will be suitable for the chosen type of window or door. For other handle models, their colors, and compatibility with our window or door profiles, contact us.
Dirigent, with pull handle, without PC hole
Dirigent, with pull handle, with PC hole
Dirigent, internal and external handle with PC hole
